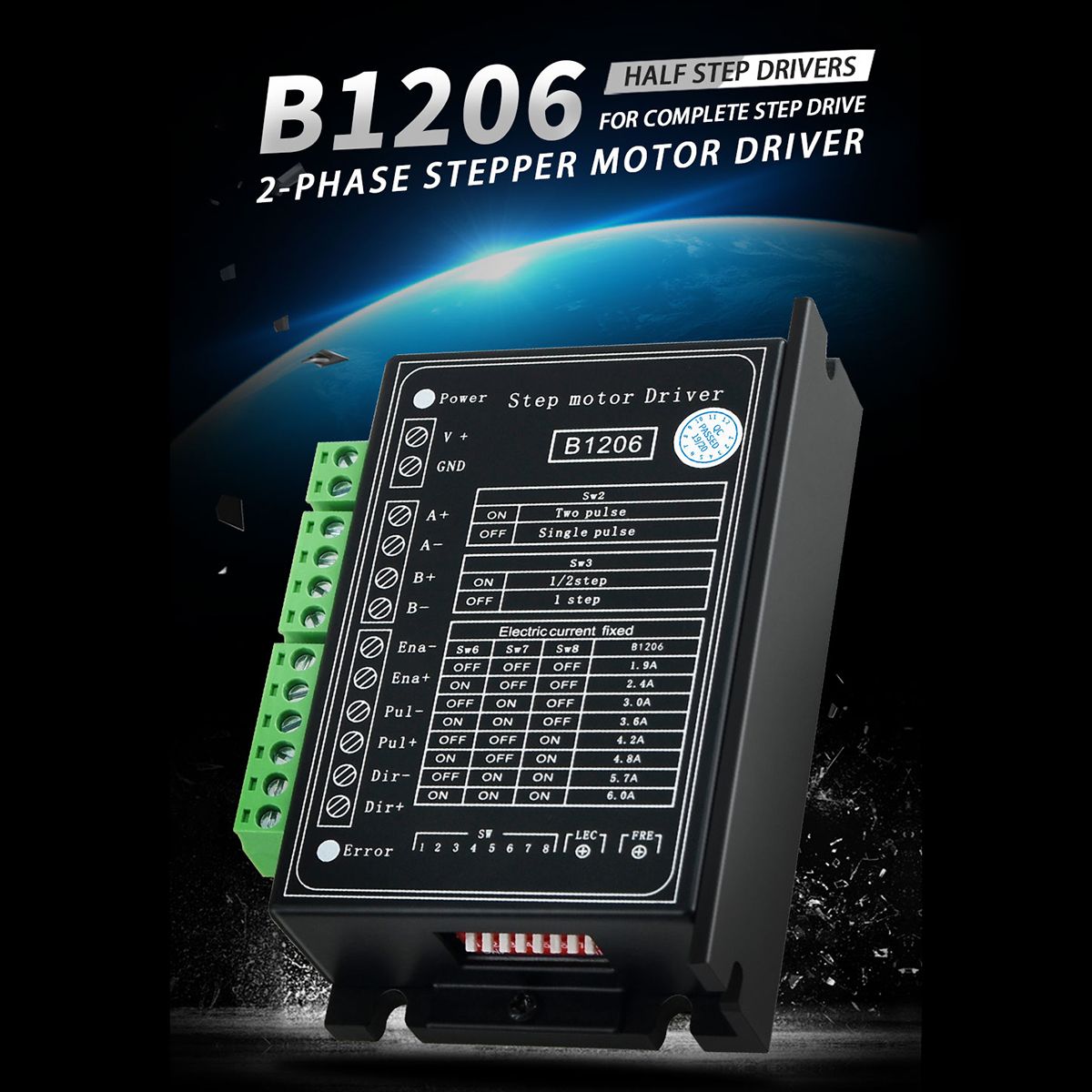

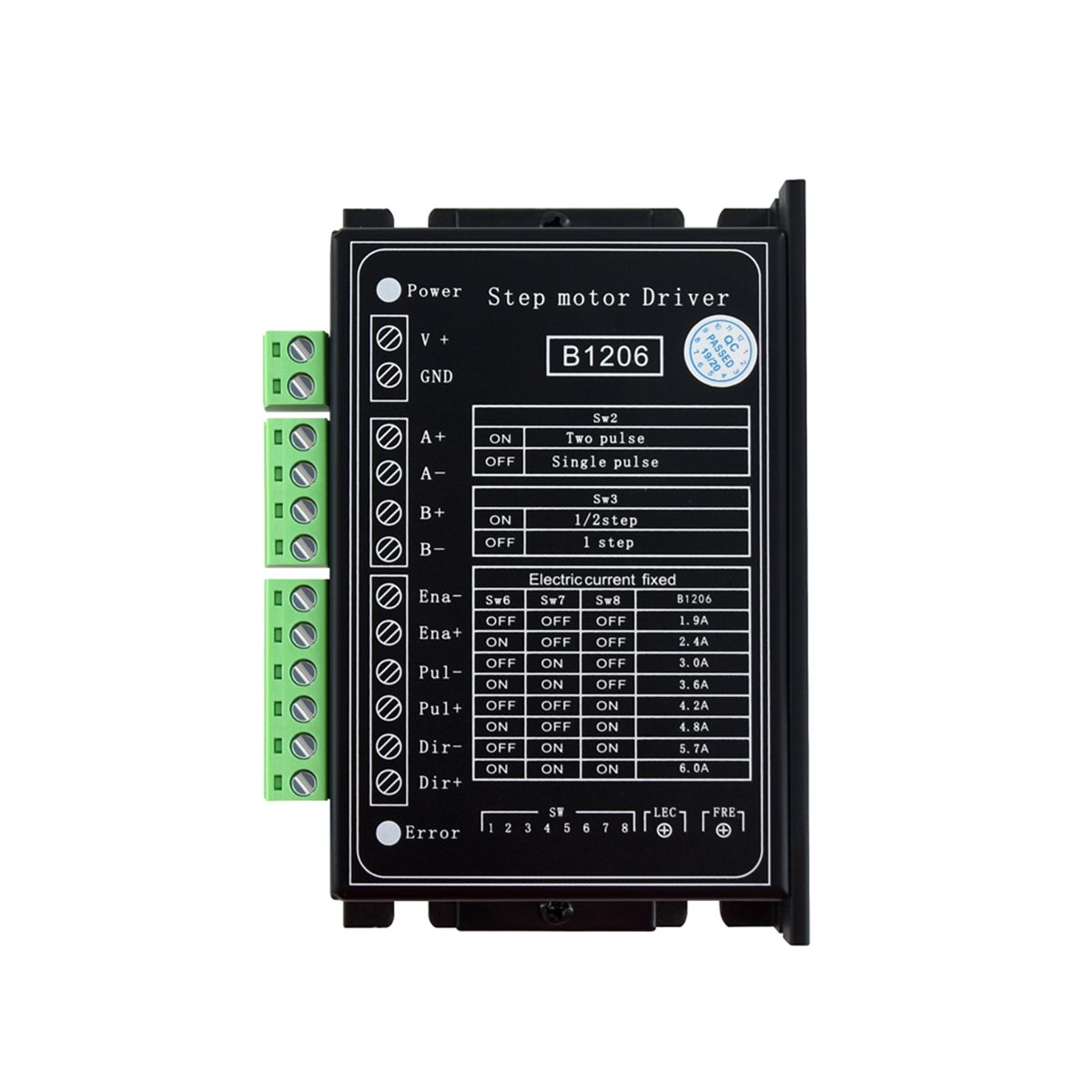

B1206 Full/Half Step Driver 2-Phase Stepper Motor Driver Driving Voltage 20V-120VDC Current 6A
$59.00
Model DTBCVRFN
Availability: In Stock
Viewed 1057 times
Categories
Cart
Account
Search
Recent View
Go to Top
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Product Description
Features:
Reduce the noises and to make motor run steadily. It has phase protection and over current protection.
The full/half step series driver series uses the new current control technology to develop high-performance stepper motor drivers.
Improving the high speed torque of stepping motor. Reduce the motor temperature.
The driving voltage is DC20V-DC120V, which can be adapted to all kinds of brands stepper motor; The current is below 6.0A(1.8A-6A).
The diameter is 57mm,86mm stepper motor; The four-wire, six-wire and eight-wire two-phase hybrid stepping motor can be used.
Specifications:
Driving Voltage: DC20V-DC120V
Current: 6.0A(1.8A-6A)
Package Weight: 280g / 9.9oz
Packing List:
1 * Driver
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-7k2r.jpg)
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-xkbx.jpg)
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-gep9.jpg)
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-gqik.jpg)
Reduce the noises and to make motor run steadily. It has phase protection and over current protection.
The full/half step series driver series uses the new current control technology to develop high-performance stepper motor drivers.
Improving the high speed torque of stepping motor. Reduce the motor temperature.
The driving voltage is DC20V-DC120V, which can be adapted to all kinds of brands stepper motor; The current is below 6.0A(1.8A-6A).
The diameter is 57mm,86mm stepper motor; The four-wire, six-wire and eight-wire two-phase hybrid stepping motor can be used.
Specifications:
Driving Voltage: DC20V-DC120V
Current: 6.0A(1.8A-6A)
Package Weight: 280g / 9.9oz
Packing List:
1 * Driver
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-7k2r.jpg)
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-xkbx.jpg)
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-gep9.jpg)
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-gqik.jpg)
![](/image/sub/D_Printers_and_Accessories/os4053-1-d79e-yldl.jpg)
